K-412R

Standard Keyboard

Standard Keyboard

Features

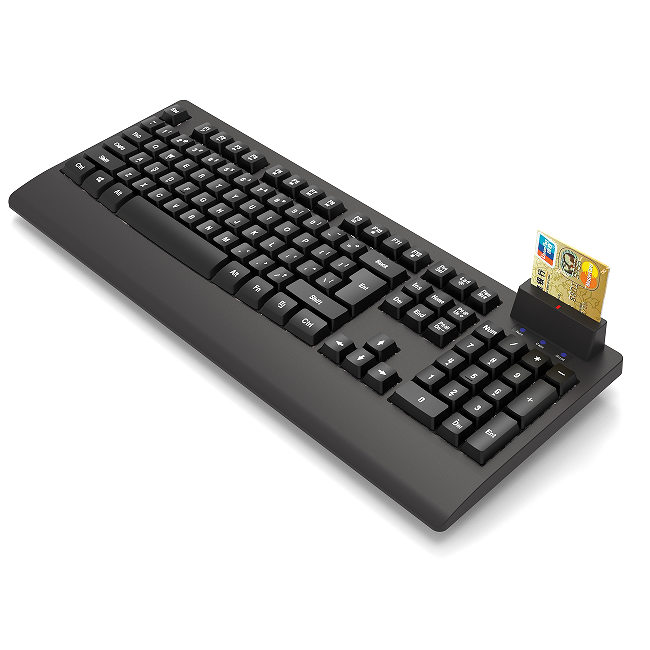

Professional chip card reader keyboard

Specification

Keyboard Specification

• EMV 2000 Certified: EMV 2000 Level 1 approved and suitable for banking / financial institutions

• Supports ISO/IEC7816 T=0 and T=1 protocol Class A B and C cards

• CCID Complaint

• FIPS-201 Compliant: Meets US Federal Information Processing Standard Publication 201*

• CAC Compatible for use with CAC card software*

• Suitable for applications in government healthcare banking entertainment

• Standard full size keyboard for fast typing

• Power / Scan LED indicators

*CAC middleware is not included

Meet the standards：

• ASE mode: T0T1 CAC 2/3 BUS I2C Extended I2C Memory Card

• CCID mode: T0T1 CAC

• Speed - at least 320 Kbit/SEC

• Voltages -5V (ISO 7816 Class A) 3V (ISO 7816 Class B) 18V (ISO 7816 Class C);

* Size:448*182*33(mm)
